Nitrided Conical Twin Barrels for Extrusion

Barrelize Parallel Twin Barrel for Extrusion can meet or surpass OEM specifications on dimensions, straightness and parallelism

*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What are Conical Twin Barrels for Extrusion?

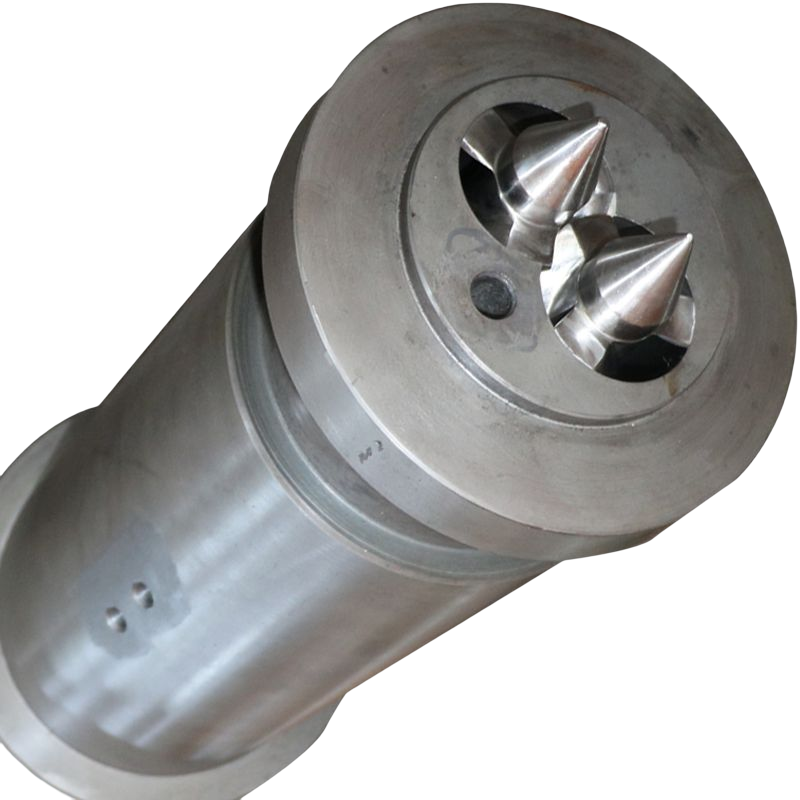

Conical Twin Barrel is the matching barrel for twin screws that have two intermeshing identical screws. They work together to convey, compact, melt, stir and press the plastic. Compared to a single barrel, the Conical twin barrel have two barrels, therefore it offers more process flexibility and has better mixing capability.

How to make the Conical Twin Barrels with nitriding treatment?

Barrelize has its own nitriding furnace in-house. The Conical twin barrels will be put into the nitriding furnace with nitrogen under a certain temperature and humidity environment. After 5 days of deep nitriding, a nitrided layer with relatively high hardness is formed on the surface of the barrel.

What 's the specification of Barrelize Nitrided Conical Twin Barrels?

The nitrided layer can reach 0.05-0.07mm. The hardness can reach HV950±50or above, equivalent to HRC68~69.

The general advantage of Barrelize Conical Twin Barrels: corrosion resistance and wear resistance,improve the strength resistance to the fatigue, and finally improve the usetime.


What is application for Barrelize Nitrided Conical Twin Barrels?

blow film extrusion machines, plastic sheet extrusion machines, wire &cable extrusion machine

Call us now to talk to our team about your specific demand. We have an expert here to listen to your demands and understand what you are looking for.


Product

Material Base

Treatment

Technical Parameter

Application

Barrel

38CrMoAlA

Nitriding

tempering hardness :HB260-280
nitriding hardness: HV950
nitride layer depth :0.4-0.6MM,
brittleness:≤ 2

Commonly used for acid-free plastics with GF less than 10%,
such as PP\PS\AS\ABS\TPU\TPE

Barrel

38CrMoAlA

Bimetallic Fe-based alloy

Alloy thickness: 1.5-2MM
Surface hardness:HRC60-65

Commonly used for adding acid plastic with GF less than 30%,PC/PA

Barrel

38CrMoAlA

Bimetallic Ni-based alloy+15% tungsten carbide powder

Alloy thickness: l.5-2MM,
Surface hardness HRC52~55

Commonly used for adding acid plastic with GF
less than 35%, PA/LCP/PBT

Barrel

38CrMoAlA

Bimetallic Ni-based alloy+25% tungsten carbide powder

Alloy thickness: l.5-2MM
Surface hardness: HRC58~62

generally used to add aci lastic PEEK/PPS/LCP/flame retardant

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Conical Twin Barrels for Extrusion suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Conical Twin Barrels for Extrusion Service & Cooperative
