Bimetallic Conical Twin Screw for Extrusion Suppliers, Manufacturers, Factory

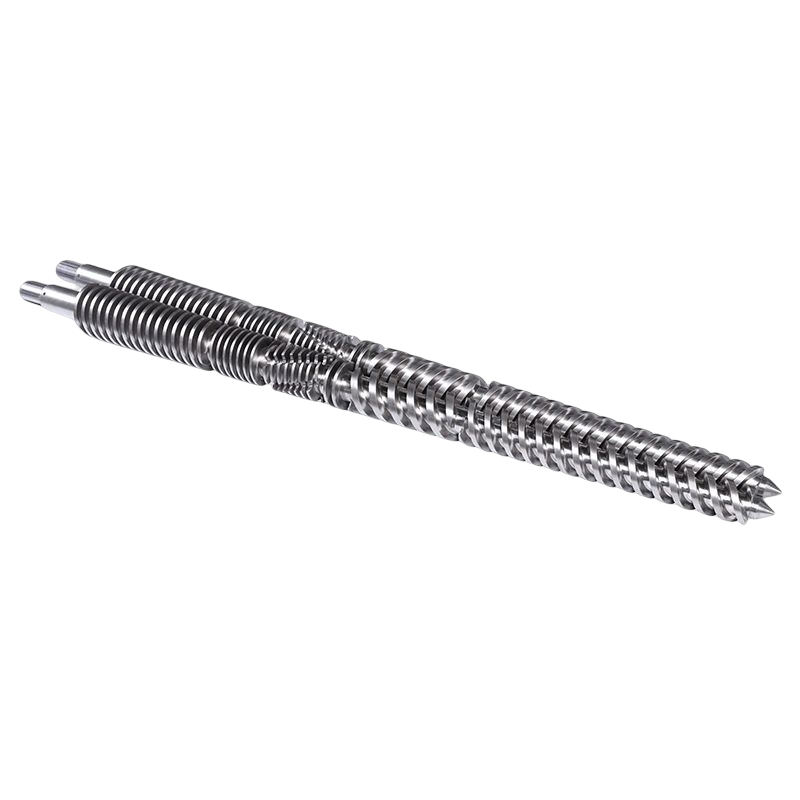

Bimetallic Conical Twin Screw for Extrusion

Barrelize twin screws are designed with a detailed engineering and produced precisely with very tight tolerances.

*Material: High quality 38CrMoAlA 42CrMo

*Treatment: Nitriding,Bimetallic,Electroplating

*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm

*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect

*Suitable for: PP,PE,ABS,PVC,TPE ect

*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output

What is Bimetallic Conical Twin Screw for Extrusion?

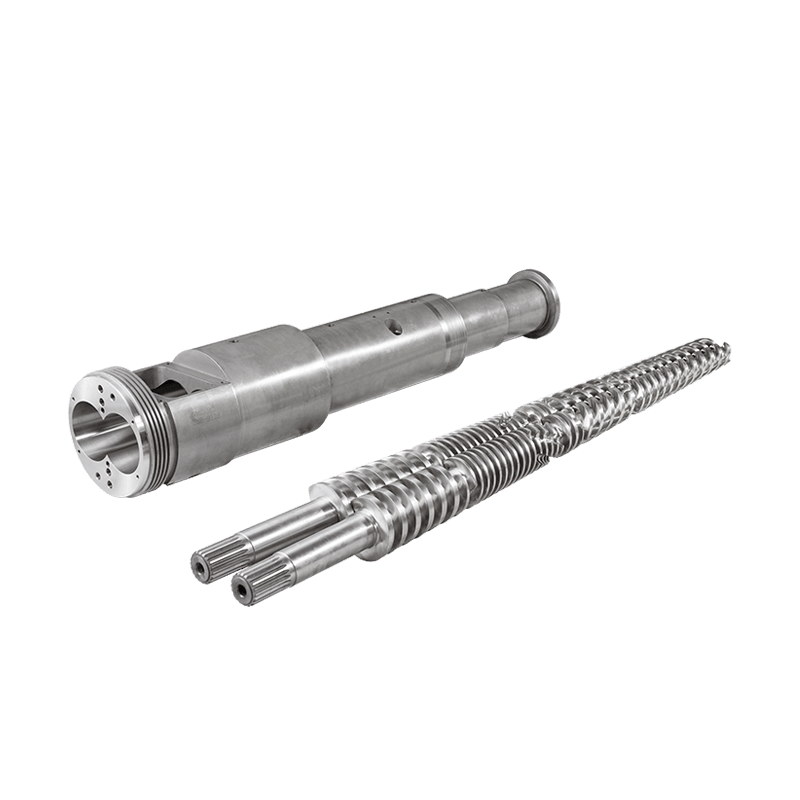

Compared to the single extruder, conical twin screw has two intermeshing identical screws encased in a matching barrel

For Bimetallic, it means that bimetallic conical twin screw is made of two alloys metals. The first metal is the base material and the second metal is the coating material. So the bimetallic conical twin screw for extrusion has better corrosion and abrasion resistance, is more durable, and lasts longer than non-bimetallic ones.

How to make the bimetallic conical twin screw for extrusion?

Barrelize use PTA welding machines to spray and weld the special ni-based alloy powders on the screw's ridge. So it can protect the screw flights and postpone the wear after we apply an abrasion and corrosion-proof coating layer on the top of the screw flights.

What 's the specification of a bimetallic conical twin screw for extrusion?

For the first base material, you can choose 38CrMoALA and 42CrMo. The second metal is ni-based alloy usually. Barrelize can make the thickness of the bimetallic layer : 1.5-2mm. The hardness can reach HRC53-HRC56.

The general advantage of bimetallic conical twin screws for extrusion: high corrosion resistance, high wear resistance, and high temperature resistance, more durable, and longer lifetime.

What is the application of bimetallic conical twin screws for extrusion?

Additive plastic materials with less than 30% glass fiber, nylon, PC, PPA, te, fire PC+ glass fiber, Nylon + glass fiber.

blow film extrusion machines, plastic sheet extrusion machines, wire &cable extrusion machine

Contact us now about detailed requirements. Barrelize can offer you the proper proposal for a conical twin screw for extrusion with a suitable coating alloy for an efficient lifetime.

Product	Material Base	Treatment	Technical Parameter	Application
Screw	38CrMoAlA	Nitriding	Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness :≤2.5 Surface finish Ra0.04	used for ordinary acid-free low particle size and does not contain GF. Such as ABS\PP\PS, etc.
Screw	38CrMoAlA	Bimetallic Ni-based alloy	Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness :≤2.5 Surface finish Ra0.04	used for adding acid plastic with GF less than 30%
Screw	42CrMo	Bimetallic Ni-based alloy+ElectroPlating	Alloy thickness≥1.5mm ElectroPlating thickness : 0.03~0.0SMM Hardness: HRC52~55	transparent material/ color mixing material
Screw	Fully hard powder metallurgy steel	vacuum quenching prooess	Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM	suitable for engineering plastics with 35% GF or less, high temperature materials.PA+ GF/ LCP+ GF/High Temperature PC
Screw	Full hard powder metallurgy steel	vacuum quenching prooess	Quenching hardness: HRC59~61 Thickness 0.005~0.01MM	suitable for engineering plastics with 45% GF or less

Sourcing Plasticizing Equipment Direct from Barrelize

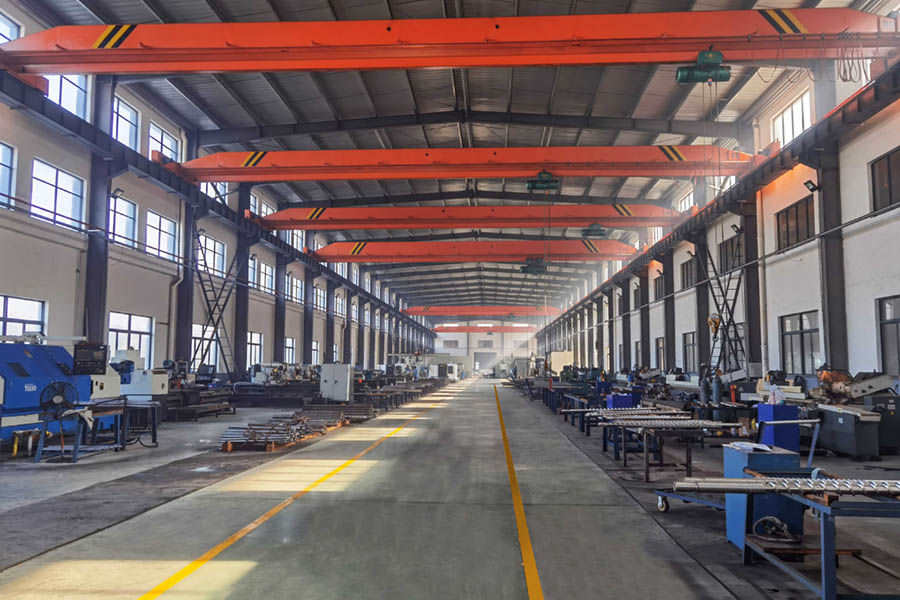

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Bimetallic Conical Twin Screw for Extrusion suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Bimetallic Conical Twin Screw for Extrusion Service & Cooperative
